100 Gallon Dual Cell Fuel Transfer Tank

This tank is designed for long-bed trucks only!

This fuel tank provides an optimal capacity for a range of applications, such as motorsports, commercial use, construction, etc. It holds 100 gallons across dual cells, with a 70% / 30% split (approx. 70/30 gal.). Low-profile pump mounts enable secure bed storage with almost any bed cover. A storage bin on the front provides space for hoses as well as chains, straps, and other items.

Constructed of 14-gauge carbon steel, it is resistant to cracking, dents, and expansion warpage. Coated in a Hammered Black Powder coat finish, the most protective finish in the industry. The tank includes a 1-year warranty against manufacturing defects, excluding paint damage caused by fuel.

**Our split/dual cells are 2 completely separate cells welded together to eliminate any cross-contamination between fuels.

*All of our fuel tanks are compatible with both gasoline & diesel

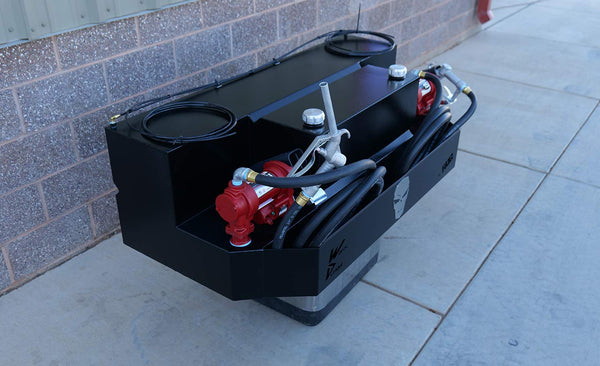

PUMPS: All of our Fuel tanks are designed to work with GPI Fuel Pumps, Model # M-150S-AU & Fill-Rite 15 GPM (part# FR610HA)

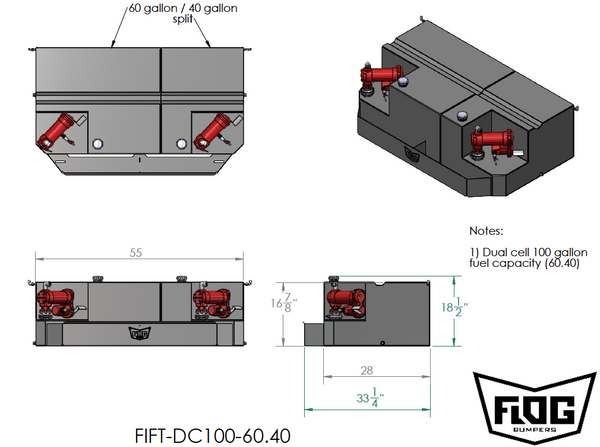

Fuel Tank Dimensions

Width: 30 1/4 '' Height: 18 1/4 '' Length: 60''

Weight: 235

100 Gal. Dual Cell Fuel Transfer Tank
